SAF87DR112M4詳細信息
SAF87DR112M4
訂購熱線：13360667204
關鍵詞：22千瓦臥式減速器電機一體機_SAF87DR112M4_SAF87DT112M4
SAF87DR112M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF87DR112M4 | 123.48 | 4KW | 12.0rpm | 2440N.m | 146kg | 27600N | 0.85 |
| SAF87DR112M4 | 110.40 | 4KW | 13.0rpm | 2200N.m | 146kg | 28100N | 0.90 |
| SAF87DR112M4 | 99.26 | 4KW | 15.0rpm | 1990N.m | 146kg | 28500N | 1.00 |
| SAF87DR112M4 | 86.15 | 4KW | 17.0rpm | 1740N.m | 146kg | 28800N | 1.10 |
| SAF87DR112M4 | 77.14 | 4KW | 19.0rpm | 1570N.m | 146kg | 29100N | 1.15 |
| SAF87DR112M4 | 70.43 | 4KW | 21.0rpm | 1610N.m | 146kg | 29000N | 1.00 |
| SAF87DR112M4 | 64.27 | 4KW | 23.0rpm | 1480N.m | 146kg | 29200N | 1.10 |
| SAF87DR112M4 | 57.00 | 4KW | 26.0rpm | 1310N.m | 146kg | 29400N | 1.20 |
| SAF87DR112M4 | 47.91 | 4KW | 30.0rpm | 1110N.m | 146kg | 29600N | 1.45 |
| SAF87DR112M4 | 44.03 | 4KW | 33.0rpm | 1020N.m | 146kg | 29700N | 1.55 |
| SAF87DR112M4 | 39.10 | 4KW | 37.0rpm | 910N.m | 146kg | 29700N | 1.75 |
| SAF87DR112M4 | 34.96 | 4KW | 42.0rpm | 820N.m | 146kg | 29700N | 1.95 |
| SAF87DR112M4 | 31.43 | 4KW | 46.0rpm | 740N.m | 146kg | 28900N | 2.20 |
| SAF87DR112M4 | 27.28 | 4KW | 54.0rpm | 645N.m | 146kg | 28000N | 2.50 |
| SAF87DR112M4 | 25.50 | 4KW | 57.0rpm | 615N.m | 146kg | 26400N | 2.00 |
SAF87DT112M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF87DT112M4 | 123.48 | 4KW | 12.0rpm | 2440N.m | 146kg | 27600N | 0.85 |
| SAF87DT112M4 | 110.40 | 4KW | 13.0rpm | 2200N.m | 146kg | 28100N | 0.90 |
| SAF87DT112M4 | 99.26 | 4KW | 15.0rpm | 1990N.m | 146kg | 28500N | 1.00 |
| SAF87DT112M4 | 86.15 | 4KW | 17.0rpm | 1740N.m | 146kg | 28800N | 1.10 |
| SAF87DT112M4 | 77.14 | 4KW | 19.0rpm | 1570N.m | 146kg | 29100N | 1.15 |
| SAF87DT112M4 | 70.43 | 4KW | 21.0rpm | 1610N.m | 146kg | 29000N | 1.00 |
| SAF87DT112M4 | 64.27 | 4KW | 23.0rpm | 1480N.m | 146kg | 29200N | 1.10 |
| SAF87DT112M4 | 57.00 | 4KW | 26.0rpm | 1310N.m | 146kg | 29400N | 1.20 |
| SAF87DT112M4 | 47.91 | 4KW | 30.0rpm | 1110N.m | 146kg | 29600N | 1.45 |
| SAF87DT112M4 | 44.03 | 4KW | 33.0rpm | 1020N.m | 146kg | 29700N | 1.55 |
| SAF87DT112M4 | 39.10 | 4KW | 37.0rpm | 910N.m | 146kg | 29700N | 1.75 |
| SAF87DT112M4 | 34.96 | 4KW | 42.0rpm | 820N.m | 146kg | 29700N | 1.95 |
| SAF87DT112M4 | 31.43 | 4KW | 46.0rpm | 740N.m | 146kg | 28900N | 2.20 |
| SAF87DT112M4 | 27.28 | 4KW | 54.0rpm | 645N.m | 146kg | 28000N | 2.50 |
| SAF87DT112M4 | 25.50 | 4KW | 57.0rpm | 615N.m | 146kg | 26400N | 2.00 |
SAF87DR112M4電動機減速器類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

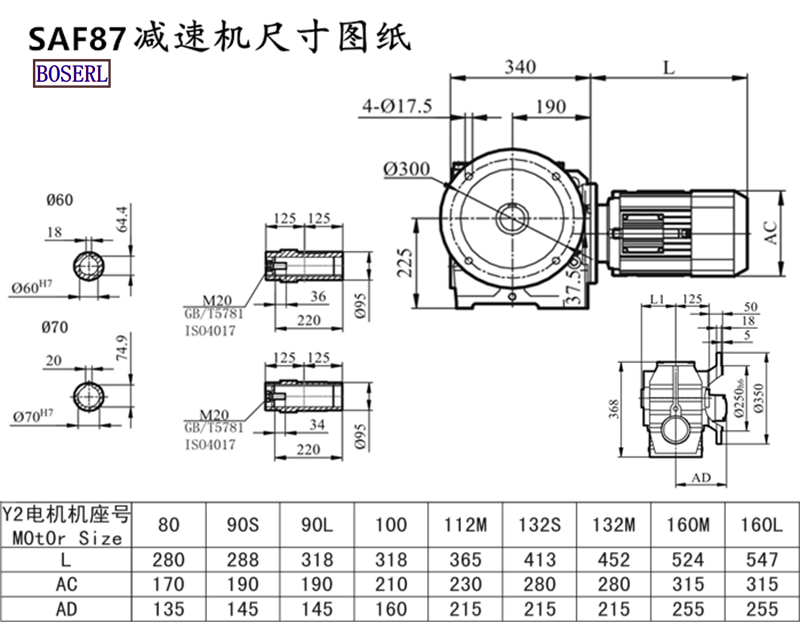

SAF87DR112M4電動機減速器安裝尺寸圖紙
SAF87DR112M4電動機減速器生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
法蘭式減速機應用案例展示：
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 22千瓦臥式減速器電機一體機 SAF87DR112M4 SAF87DT112M4
- 上一條SAF87DV112M4
- 下一條SAF87DVE112M4
