SAF37DV80S4詳細信息
SAF37DV80S4
訂購熱線：13360667204
關鍵詞：30千瓦調速減速電機一體機_SAF37DV80S4_SAF37DM80S4
SAF37DV80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF37DV80S4 | 30.68 | 0.55KW | 45.0rpm | 93N.m | 22kg | 2680N | 0.80 |
| SAF37DV80S4 | 28.76 | 0.55KW | 48.0rpm | 87N.m | 22kg | 2660N | 0.85 |
| SAF37DV80S4 | 25.38 | 0.55KW | 54.0rpm | 78N.m | 22kg | 2630N | 0.95 |
| SAF37DV80S4 | 22.50 | 0.55KW | 61.0rpm | 69N.m | 22kg | 2590N | 1.05 |
| SAF37DV80S4 | 15.53 | 0.55KW | 89.0rpm | 52N.m | 22kg | 2230N | 0.95 |
| SAF37DV80S4 | 13.39 | 0.55KW | 103rpm | 45N.m | 22kg | 2190N | 1.10 |
| SAF37DV80S4 | 19.13 | 0.55KW | 72.0rpm | 60N.m | 22kg | 2530N | 1.20 |
| SAF37DV80S4 | 12.48 | 0.55KW | 111rpm | 42N.m | 22kg | 2170N | 1.15 |
| SAF37DV80S4 | 10.91 | 0.55KW | 126rpm | 37N.m | 22kg | 2130N | 1.30 |
| SAF37DV80S4 | 10.23 | 0.55KW | 135rpm | 35N.m | 22kg | 2110N | 1.35 |
| SAF37DV80S4 | 9.02 | 0.55KW | 153rpm | 31N.m | 22kg | 2060N | 1.50 |
| SAF37DV80S4 | 8.00 | 0.55KW | 172rpm | 27N.m | 22kg | 2010N | 1.65 |
| SAF37DV80S4 | 6.80 | 0.55KW | 203rpm | 23N.m | 22kg | 1950N | 1.85 |
SAF37DM80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF37DM80S4 | 30.68 | 0.55KW | 45.0rpm | 93N.m | 22kg | 2680N | 0.80 |
| SAF37DM80S4 | 28.76 | 0.55KW | 48.0rpm | 87N.m | 22kg | 2660N | 0.85 |
| SAF37DM80S4 | 25.38 | 0.55KW | 54.0rpm | 78N.m | 22kg | 2630N | 0.95 |
| SAF37DM80S4 | 22.50 | 0.55KW | 61.0rpm | 69N.m | 22kg | 2590N | 1.05 |
| SAF37DM80S4 | 15.53 | 0.55KW | 89.0rpm | 52N.m | 22kg | 2230N | 0.95 |
| SAF37DM80S4 | 13.39 | 0.55KW | 103rpm | 45N.m | 22kg | 2190N | 1.10 |
| SAF37DM80S4 | 19.13 | 0.55KW | 72.0rpm | 60N.m | 22kg | 2530N | 1.20 |
| SAF37DM80S4 | 12.48 | 0.55KW | 111rpm | 42N.m | 22kg | 2170N | 1.15 |
| SAF37DM80S4 | 10.91 | 0.55KW | 126rpm | 37N.m | 22kg | 2130N | 1.30 |
| SAF37DM80S4 | 10.23 | 0.55KW | 135rpm | 35N.m | 22kg | 2110N | 1.35 |
| SAF37DM80S4 | 9.02 | 0.55KW | 153rpm | 31N.m | 22kg | 2060N | 1.50 |
| SAF37DM80S4 | 8.00 | 0.55KW | 172rpm | 27N.m | 22kg | 2010N | 1.65 |
| SAF37DM80S4 | 6.80 | 0.55KW | 203rpm | 23N.m | 22kg | 1950N | 1.85 |

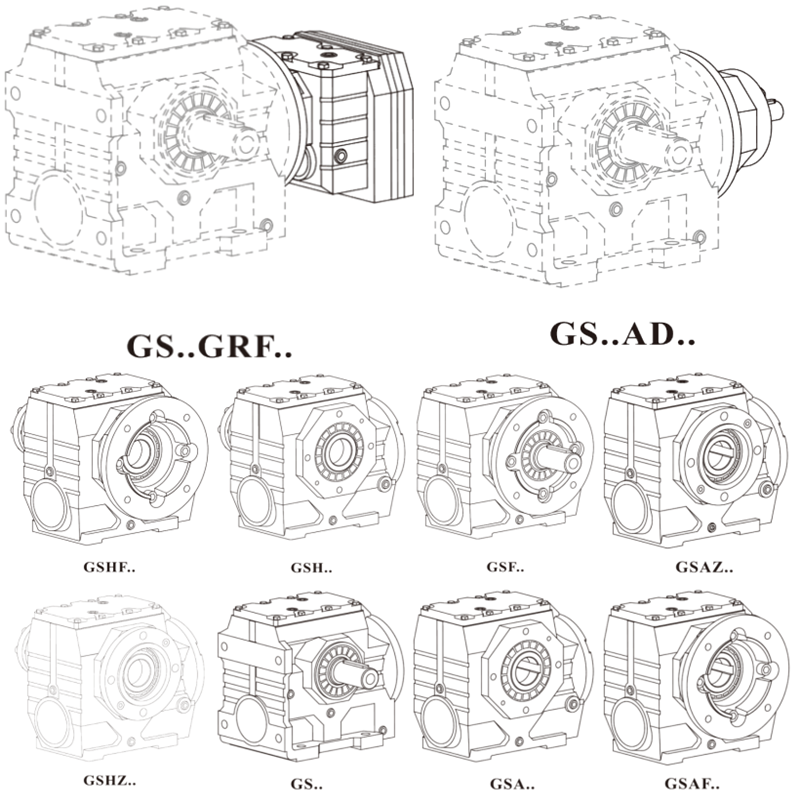

SAF37DV80S4電機減速機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

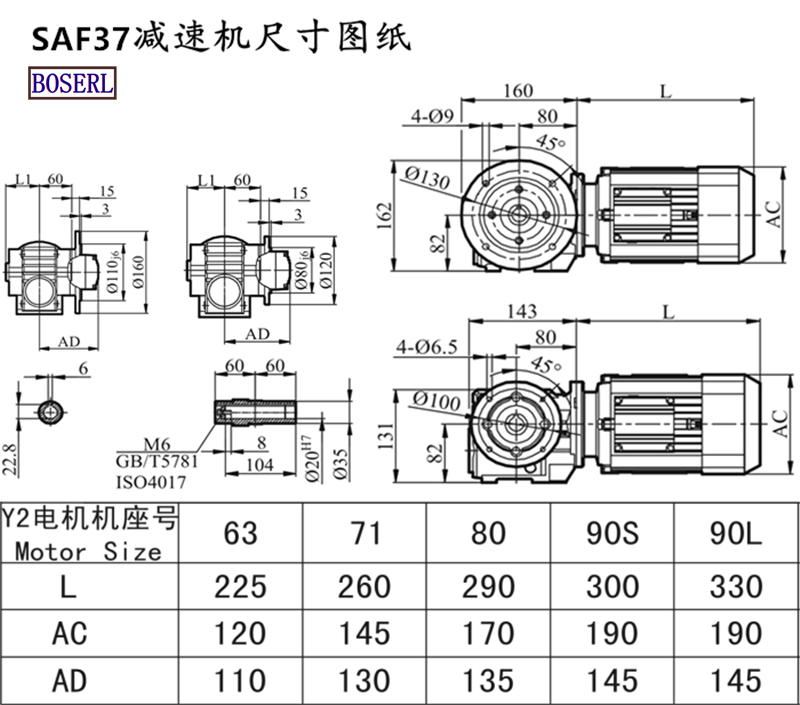

SAF37DV80S4電機減速機安裝尺寸圖紙
SAF37DV80S4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A約
法蘭式減速機應用案例展示：
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
